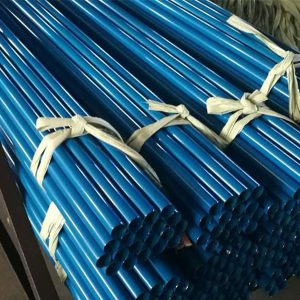

Powder Coated Aluminum Tube
Aluminum Round Tubes are available in alloys 6061, 6063,6082, Aluminum 6061 is the most widely used alloy, offering better corrosion resistance and weldability than other Aluminum Tube, but less strength. Alloy 6063 offers high corrosion resistance and is commonly used for outdoor structural applications such as Aluminum Tube railings and trims.
If any questions,please contact sales@grandsteeltube.com
- Description
- Chemical Composition:
- Specifications
- Inquiry
Aluminum tube.
It is a kind of high-strength hard aluminum, which can be heat-treated and strengthened. It has medium plasticity in annealing, quenching and hot state. It has good spot weldability. The aluminum tube has the tendency to form intergranular cracks when using gas welding and argon arc welding. After quenching and cold work hardening, the machinability is good and it is not good in the annealed state. The corrosion resistance is not high, and the anodizing treatment and painting method or the surface is coated with an aluminum layer to improve the corrosion resistance. It can also be used as a mold material.
Aluminum tube advantages:
1 – the advantages of welding technology: thin-walled copper-aluminum tube welding technology suitable for industrial production, known as the world-class problem, is the key technology for the aluminum-based copper of the air-conditioner connecting tube.
2 – the service life advantage: from the inner wall of the aluminum tube, since the refrigerant does not contain moisture, the inner wall of the copper-aluminum connecting tube does not corrode.
3 – the energy-saving advantage: the connecting line between the indoor unit and the outdoor unit of the air conditioner, the lower the heat transfer efficiency, the more energy-saving, or the better the heat insulation effect, the more power-saving.
4 – excellent bending performance, easy to install, transfer machine
Surface finish editing.
1 – Chemical treatment: oxidation, electrophoretic coating, fluorocarbon coating, powder coating, wood grain transfer
2 – Mechanical treatment: mechanical drawing, mechanical polishing, sand blasting
If any questions,you are more than welcome to contact sales@grandsteeltube.com
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Impurity | Al |
| 2014 | 0.5-1.2 | 0.7 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest |
| 2017 | 0.2-0.8 | 0.7 | 3.5-4.5 | 0.4-1.0 | 0.4-0.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest |
| 2024 | 0.5 | 0.5 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | - | 0.15 | Rest |
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | - | 0.15 | Rest |
| 5056 | 0.3 | 0.4 | 0.1 |
0.05-0.20 |
4.5-5.6 | 0.05-0.20 | 0.1 | - | - | 0.15 | Rest |
| 5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | - | 0.15 | Rest |
| 5754 | 0.4 | 0.4 | 0.1 | 0.5 | 2.6-3.6 | 0.3 | 0.2 | 0.15 | - | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.70 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | - | 0.15 | Rest |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | - | 0.15 | Rest |
| 6082 | 0.7-1.3 | 0.5 | 0.1 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.1 | - | 0.15 | Rest |
| 7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0.06 | 0.08-0.15 | 0.15 | Rest |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | - | 0.15 | Rest |
If any questions,please feel free to contact sales@grandsteeltube.com
| tem | Aluminium pipe/pipes Aluminium Tube/Tubes/tubing |
| Material | Aluminium |
|
Grade |
1000 series: 1050,1060,1070,1080,1100,1435, etc2000 series: 2011,2014,2017,2024, etc
3000 series: 3002,3003,3104,3204,3030, etc 5000 series: 5005,5025,5040,5056,5083, etc 6000 series: 6101,6003,6061,6063,6020,6201,6262,6082, etc 7000 series: 7003,7005,7050,7075, etc |
| standards | ASTM, ASME,EN, JIS, DIN,GB/T etc |
| Size | Outer Diameter:1-250mm |
| Wall Thickness: 0.15-50mm | |
| Length: 10mm -6000mm | |
|
Surface treatment |
Mill finishAnodized
Electrophoresis Powder coating Wooden grain Sand blast |
| Surface colors | Nature, silver, bronze, champagne, black, gloden, etcAs customized |
| Temper | T3-T8 |
|
Moulding/Pattern
|
|
|
Application
|
1. Lighting,solar reflector plate.2.architectural appearance, interior decoration:ceiling,metope,
furniture,cabinets and so on. 3.elevator,nameplate, bags. 4.automotive interior and exterior decoration. 5. Interior decoration: such as photo frame. 6.household appliances, refrigerator, microwave oven, audio equipment. 7. Aerospace and military aspects. 8, machinery parts processing, mold manufacturing . 9. chemical/insulation pipeline coating. |
If any questions,you are more than welcome to contact sales@grandsteeltube.com
