Our products are checked through 9 processes at least , and have quality inspection reports from authoritative third
parties.Professional inspection is provide to ensure that the weight of the goods is sufficient.
EN10305-5 Welded Square Tube
The European norm EN 10305-5 specifies the requirements for unalloyed carbon steel welded square and rectangular tubes for precision systems. These tubes are intended for use in the construction of greenhouses, scaffolding and fences and have different specific dimensional tolerances.
- Description
- Inquiry
Product Description
|
Product Name
|
Galvanized square pipe
|
|||
|
Specifications
|
Square pipe: 20*20mm~600*600mm
Thickness: 1.2mm~20mm Length: 2.0m~12m |
|||
|
Material
|
Low carbon steel
|
|||
|
Steel Grade
|
Q195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C |
|||
|
Standard
|
EN10219, EN10210
GB/T 6728 JIS G3466 ASTM A500, A36 |
|||
|
Surface Anti-rusty Coating
|
pre-galvanized (Zinc coating: 40-80g/m2)
hot dipped galvanized (Zinc coating: 200-600g/m2 ) |
|||
|
Pipe Ends
|
Plain ends
|
|||
|
Certificates
|
ISO 9001 /TUV/SGS/BV
|
|||
|
Packing and Shipment
|
1. OD 200mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 200mm in bulk or according to custom opinion 3. 23 tons/container and 5 tons/size for a trial order; 4. For 20″ container the max length is 5.8m; 5. For 40″ container the max length is 11.8m. |
|||
|
Usage
|
Construction / building materials steel pipe
Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe |
|||
|
Trade terms
|
FOB, CFR, CIF, EXW, etc
|
|||
|
Payment terms
|
T/T,
|
|||
|
Delivery time
|
15-45 days (based on quantity) after receiving advanced payment by T/T
|
|||
|
Main market
|
Southeast Asia, South Asia, Middle East, Europe, South America,etc
|
|||

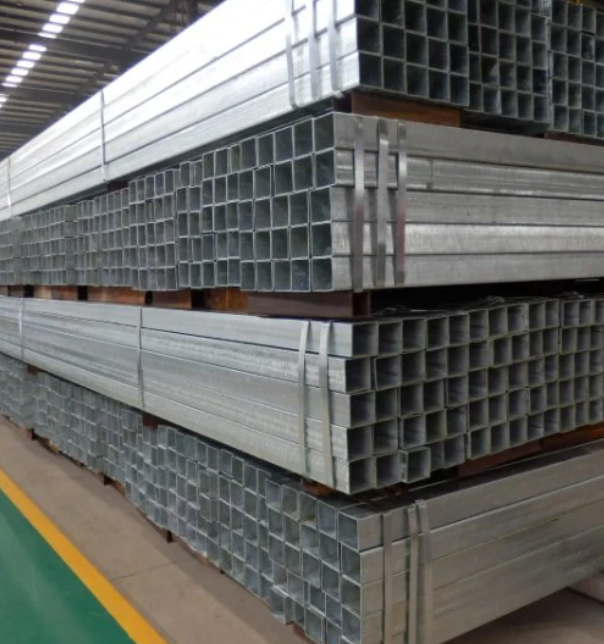

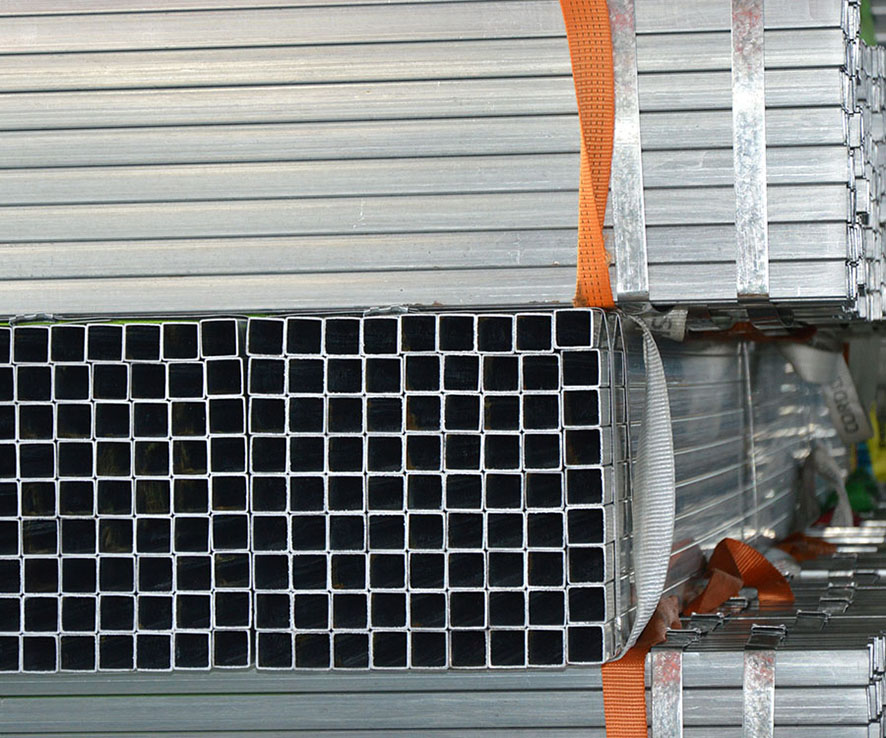

Detailed Images
INSPECTION
|

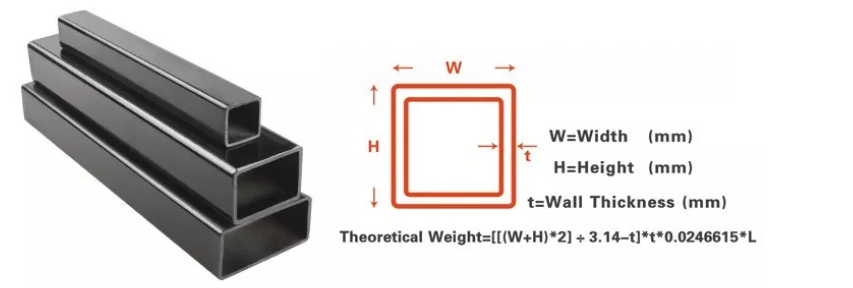

Square Pipe size chart
|
||||
|
Square Hollow Section
|
Thickness
|
|||
|
20*20 25*25 30*30
|
1.2-3.0
|
|||
|
40*40 50*50
|
1.2-4.75
|
|||
|
60*60
|
1.2-5.75
|
|||
|
70*70 80*80 75*75 90*90 100*100
|
1.5-5.75
|
|||
|
120*120 140*140 150*150
|
2.5-10.0
|
|||
|
160*160 180*180 200*200
|
3.5-12.0
|
|||
|
400*400 280*280 450*300 450*200
|
5.0-20.0
|
|||
|
250*250 300*300 400*200 350*350 350*300
|
4.5-15.75
|
|||
