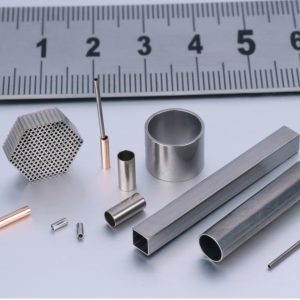

Seamless Titanium Tubes

Seamless Titanium Tubes

The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.

  • Description
  • Specifications
  • Chemical Property & Mechanical Property
  • Inquiry

Titanium Tube is half the weight of steel, so because it has a lower mass, it can be just as strong (as steel) at half the weight. Titanium Seamless Tube is characterized by its high strength to weight ratio. It is quite ductile in an oxygen free environment and has a low density. Titanium Alloy Tube has a very high melting point, which is even greater than 1650 degrees Centigrade or 3000 degrees Fahrenheit. Titanium Tubing has the chemical symbol Ti. ASTM B338 Titanium Tube is paramagnetic alloy. Titanium Welded Tube is costly compared to Aluminium.

Titanium seamless & welded tubing has double the strength of aluminium & ASME SB338 Titanium Tube is about 60% denser than aluminium. Titanium NCF Tubes is a silvered colored metal with low density and high strength. Titanium Micro Tubes are strong and lightweight making them ideal for automotive, aerospace, military and industrial applications. ASTM B338 Titanium Alloy boiler tubes is considered to be one of the strongest metals. These applications range from medical implants to airplanes and ships. Pure Titanium condenser tube is strong and corrosive resistant.

Baosheng Precision Tube is specialist in Titanium Coil Tubing & we maintain stock of Small Diameter Titanium Tubing & Large Diameter Titanium Tubing, Titanium Boiler Tubes in various size range & diameter with ASTM/ASME or NORSOK M630 specifications.

If you are looking to buy High quality assured Titanium Round Tubing or Titanium Thin Wall Tubing at best price in China, send an email to sales@grandsteeltube.com, we will send you the Free Quote & recent price of Titanium precision tubes, Heavy Wall Titanium Tubing, Titanium Dom Tubing along with inspection & delivery schedule. Titanium Oval Tube, Titanium Hollow Tube and Titanium Condenser Tubes are available in different sizes, diameter & wall thickness.

Seamless  Titanium and Titanium Alloy Tubes & Pipes
Specification ASTM B337, ASME SB338, ASTM B338, ASTM B861, ASTM B862
Material Grade Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12 etc.
Dimension Range OD 3.0-114mm, WT 0.5-10.0mm
Application Heat exchanger, cooling tower, aviation, medical, industry etc.

Chemical Properties:

N
C
H
Fe
O
Al
V
Pa
Mo
Ni
Ti
Gr1
0.03
0.08
0.015
0.20
0.18
/
/
/
/
/
Bal
Gr2
0.03
0.08
0.015
0.30
0.25
/
/
/
/
/
Bal
Gr5
0.05
0.08
0.015
0.40
0.20
5.5~6.75
3.5~4.5
/
/
/
Bal
Gr7
0.03
0.08
0.015
0.30
0.25
/
/
0.12~0.25
/
/
Bal
Gr9
0.03
0.08
0.015
0.25
0.15
2.5~3.5
2.0~3.0
/
/
/
Bal
Gr12
0.03
0.08
0.015
0.30
0.25
/
/
/
0.2~0.4
0/.6~0.9
Bal

Mechanical properities:

Grade  Tensile Strength(Min)



Yield Strength(Min) Elongation in 4D, Min, % Reduction of area, Min, %
Kis Mpa Kis Mpa
Gr1 35 240 25 170 24 30
Gr2 50 345 40 275 20 30
Gr3 72.5 500 55 380 18 30
Gr4 85 586 70 483 15 25
Gr5 130 895 120 828 10 25
Gr7 50 345 40 275 20 30
Gr9 90 620 70 483 12 25
Gr11 35 240 25 170 24 30
Gr12 70 483 50 345 18

25
