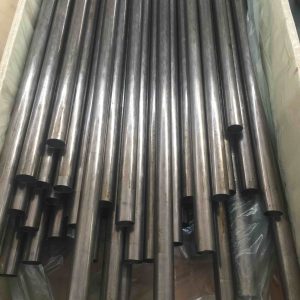

Seamless Hydraulic Steel Tubes
Synopsis of Process Routing: quality carbon steel → cold drawing → bright heat treatment without oxidization (NBK status) → nondestructive testing. In the wall honing and inside flushing under the high pressure→. Antirust oiling outside surface→ plastic capping on both ends.
Main Features: high accuracy, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening . The complicated geometrical forming and machining can be realized. Color of tube: gray with white.
Main Application: to be used in hydraulic system, automobile and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required.
If any questions,please contact sales@grandsteeltube.com
- Baosheng Advantages
- Chemical Composition & Mechanical Properties
- Inquiry
1. Production of DIN/EN10305 seamless high precision tubes since 2005.
2. Working with customers from Europe,West Asia,South America,etc since 2006.
3. Samples can be delivered within 10 days after confirmation
4. 35 days as the production period and delivery after order confirmation.
5. 200,000 meters of bright annealed seamless steel tubes in stock.
6. 200 sizes can be offered from OD:3mmxWT:0.5mm to OD:100mmxWT:10mm
7. Third party inspection like:TUV,BV,SGS,etc accepted
8. Professional team assists your special tube requirements.
If any questions,you are more than welcome to contact sales@grandsteeltube.com
Grade and Chemical Composition(%):
Grade |
Chemical Composition(%): | ||||
C max | Si max | Mn | P max | S max | |
St 35 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
St 45 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
St 52 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
Steel grade | Chemical Composition(%): | ||||||
Steel name | Steel number | C max | Si max | Mn | P max | S max | Al min |
E215 | 1.0212 | 0.10 | 0.05 | 0.70 | 0.025 | 0.025 | 0.025 |
E235 | 1.0308 | 0.17 | 0.35 | 1.20 | 0.025 | 0.025 | - |
E355 | 1.0580 | 0.22 | 0.55 | 1.60 | 0.025 | 0.025 | - |
Mechanical Properties(Mpa):
Steel grade | BK | BKW | BKS | GBK | NBK | |||||||
RmN/mm min |
min | RmN/mm min |
min | N/mm min |
ReH N/mm min |
min | N/mm min |
min | N/mm min |
ReH N/mm min |
min | |
St35 | 480 | 6 | 420 | 10 | 420 | 315 | 14 | 315 | 25 | 340-470 | 235 | 25 |
St45 | 580 | 5 | 520 | 8 | 520 | 375 | 12 | 390 | 21 | 440-570 | 235 | 21 |
St52 | 640 | 4 | 580 | 7 | 580 | 420 | 10 | 490 | 22 | 490-630 | 355 | 22 |
Steel grade | Minimum values for the delivery condition | ||||||||||||
Steel name | Steel number | + C | + LC | + SR | + A | + N | |||||||
Rm Mpa | A% | Rm Mpa | A% | Rm Mpa | ReH Mpa | A% | ReH Mpa | A% | Rm Mpa | ReH Mpa | A% | ||
E215 | 1.0212 | 430 | 8 | 380 | 12 | 380 | 280 | 16 | 280 | 30 | 290-430 | 215 | 30 |
E235 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 350 | 16 | 315 | 25 | 340-480 | 235 | 25 |
E355 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 | 450 | 22 | 490-630 | 355 | 22 |
